HiMod

HiMod actuator electronics

Designed for continuous modulation (ISO 22153 Class D) with maximum positioning accuracy

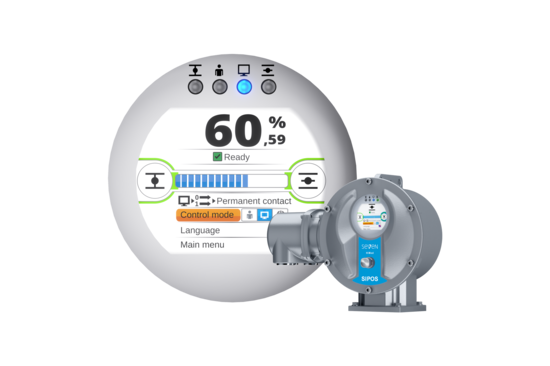

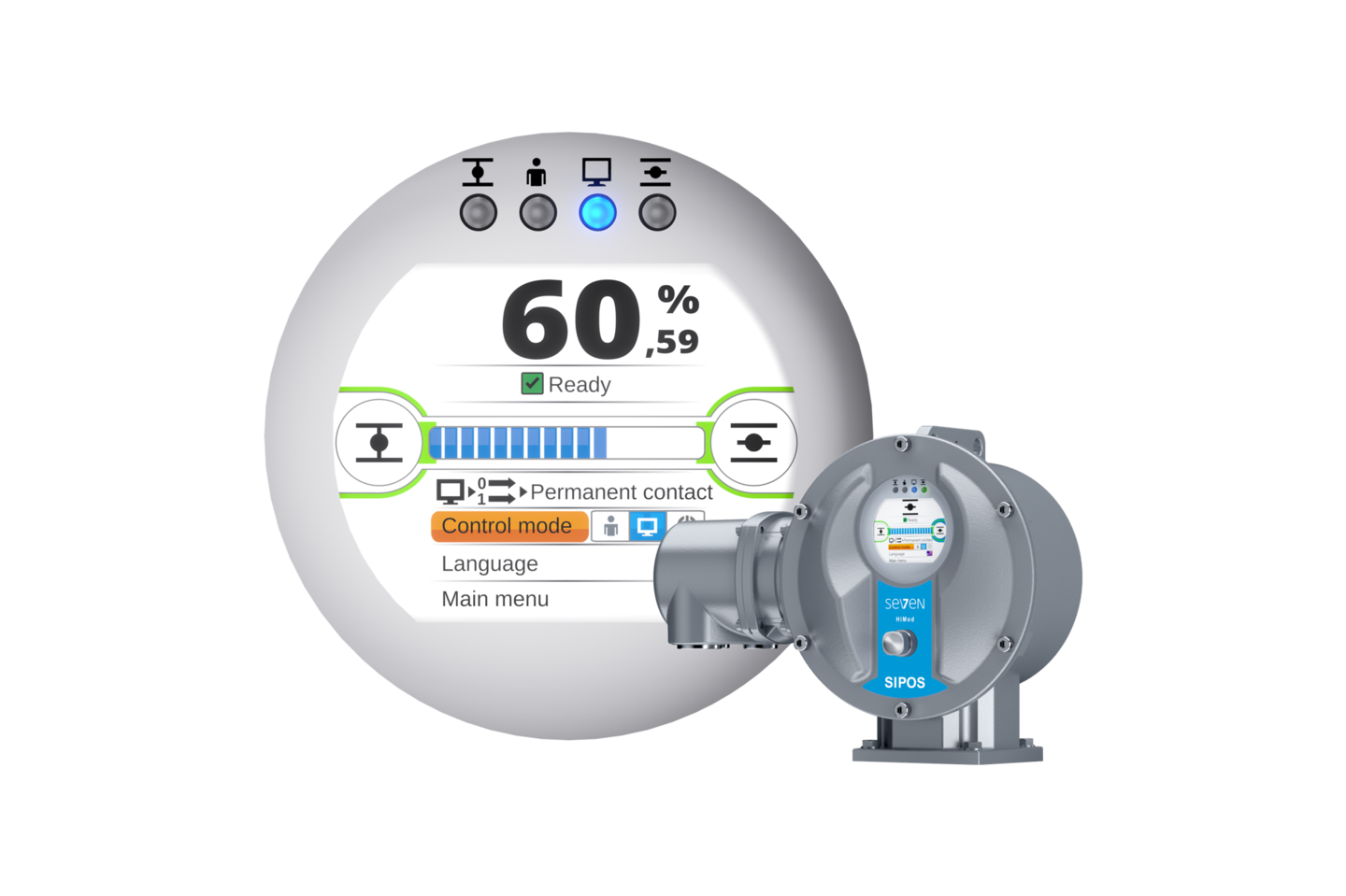

Full-graphics user interface with 4 status LEDs
Adjustable display orientation and layout
Intuitive operation via “Drive Controller”

Send inquiry

HiMod design features

Easy commissioning and operation thanks to user guidance with instructions/animations
Integrated control and power electronics with frequency converter
Internal monitoring functions including full motor protection and automatic phase sequence correction
Electronic torque limitation
Continuously adjustable position-dependent cut-off

Benefits and options

Valve protection through soft start/stop functionality
Extremely high control accuracy: max. 0.1 to 0.2% deviation
Non-intrusive commissioning
5-year warranty
Starting current less than rated current
Connection voltage tolerance -10% / +15% in the frequency range 40 - 70 Hz
Full torque with voltage fluctuations of -30% / +15%
Programmable behavior in case of emergency and communication failure
Speeds/positioning times individually adjustable for OPEN, CLOSE, EMERGENCY OPEN, and EMERGENCY CLOSE
Operation data logger with real-time recording of all events
Optional software functions
- Travel-dependent speed setting
- Travel-dependent freely adjustable positioning times
- Analog speed setpoint
- Split range function
- Synchronization of actuators
- Customer-specific software programming

Ambient temperature -20°C to +70°C
Corrosivity category C5 according to EN 15714-2
Protection class IP68 according to DIN EN 60529
